IK-201 2-Element Multi-Band 5G/LTE Antenna

IK-201

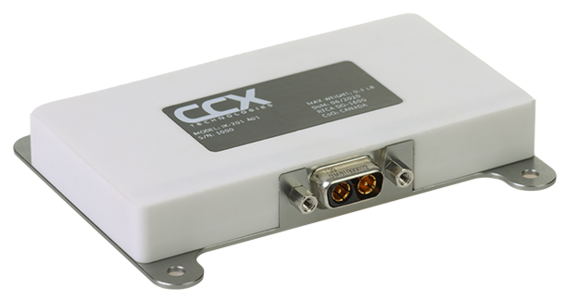

The CCX Technologies IK-201 is a two-element multi-band small form factor 5G/LTE antenna intended for installation within the cabin of an aircraft.

At just 0.6 inches tall the Antenna can be conveniently installed under a headliner, or behind almost any panel with no additional adapter brackets.

The IK-201 uses D-Sub Coax Connectors, which unlike SMA connectors will stay securely fastened in high vibration environments. The pins in the D-Sub Coaxial Connectors can also be crimped to larger diameter coaxial cables providing additional installation options with longer length very low-loss cables.

As a Transport Canada Approved Manufacturing Organization CCX Technologies can provide all documentation required to obtain the relevant certifications so that the IK-201 to be installed on any aircraft.

Applications Interfaces Specifications Architecture Datasheet

Applications

The IK-201 can be used with any CCX Technologies Router or Wireless Access Point that requires an external 5G or LTE Antenna to provide connectivity on the ground.

The antenna can also support Cabin Routers LTE and 5G Radios from other manufacturers.

Though the IK-201 is primary intended for use in an Aircraft cabin, due to the highly robust design of the antenna, it may also be suitable for other highly demanding environments, like military vehicles, and outdoor venues.

IK 201 in airplane cabin connecting a Laptop to LTE

Interfaces

QTY Interface Standards
2 RF Interface 5G/LTE/3G 600Mhz-6GHz

Specifications

Dimensions 2.25"L x 4.25"W x 0.60"H
Weight 0.3lb
Mounting Provisions 4 mounting holes for #6 bolts or screws; flange mount
Connectors MIL-DTL-24308G 2W2 Female D-Sub
Bandwidth 600Mhz-6GHz
Input Impedance 50 ohms
Average Gain 617MHz-698MHz: -3.9dBi
698MHz-806MHz: -3.1dBi
824MHz-960MHz: -2.7dBi
1427MHz-1518MHz: -5.4dBi
1710MHz-2200MHz: -1.7dBi
2490MHz-2690MHz: -2.7dBi
3300MHz-5000MHz: -3.7dBi
5150MHz-5925MHz: -2.9dBi
Peak Gain 617MHz-698MHz: -0.7dBi
698MHz-806MHz: 0.5dBi
824MHz-960MHz: 1dBi
1427MHz-1518MHz: -0.5dBi
1710MHz-2200MHz: 3.4dBi
2490MHz-2690MHz: 2.9dBi
3300MHz-5000MHz: 4.3dBi
5150MHz-5925MHz: 3dBi
Environmental Qualifications RTCA DO-160G
Outer Dimensions

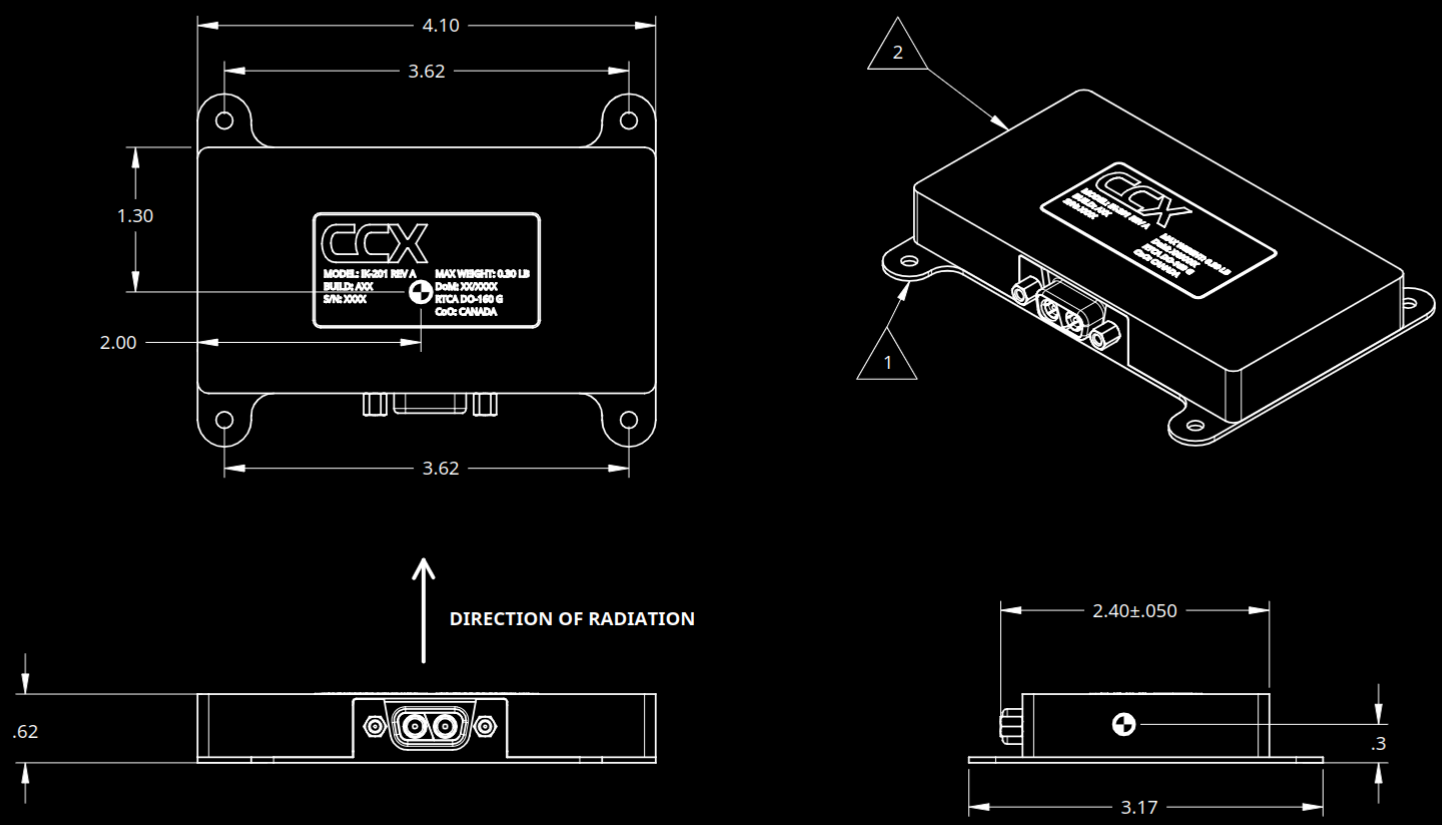

IK-201 Outer Dimmensions
