IK-200 3-Element 2.4GHz/5GHz WiFi Antenna

IK-200

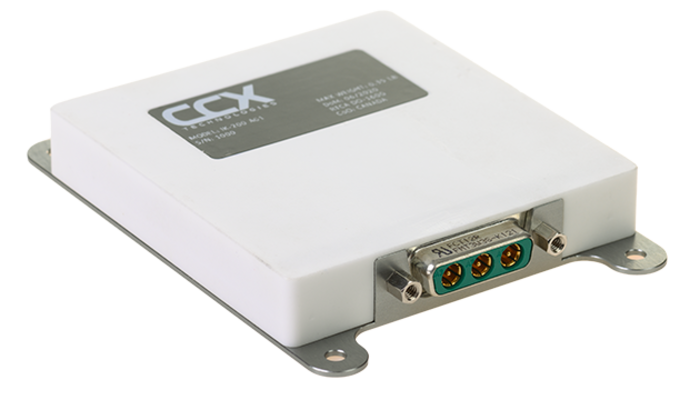

The CCX Technologies IK-200 is a three-element dual-band (2.4GHz/5GHz) WiFi antenna intended for installation within the cabin of an aircraft.

At just 0.6 inches tall the Antenna can be conveniently installed under a headliner or behind almost any panel with no additional adapter brackets.

The IK-200 uses D-Sub Coax Connectors, which unlike SMA connectors will stay securely fastened in high vibration environments. The pins in the D-Sub Coaxial Connectors can also be crimped to larger diameter coaxial cables providing additional installation options with longer length very low-loss cables.

As a Transport Canada Approved Manufacturing Organization CCX Technologies can provide all documentation required to obtain the relevant certifications so that the IK-200 to be installed on any aircraft.

Applications Interfaces Specifications Architecture Datasheet

Applications

The antenna is designed to support the Radios in all the CCX Technologies Routers, and can be used with third-party Cabin Routers and Wireless Access Points.

The IK-200 has three radiating elements so can be used with any 2 or 3 element MIMO WiFi applications. Applications requiring more radiating elements can make use of multiple IK-200's.

Though the IK-200 is primary intended for use in an Aircraft cabin, due to the highly robust design of the antenna, it may also be suitable for other highly demanding environments, like military vehicles, and outdoor venues.

IK 200 in airplane cabin connecting a Laptop to WiFi

Interfaces

QTY Interface Standards
3 RF Interface WiFi 2.4GHz and 5GHz bands

Specifications

Dimensions 3.25"L x 3.25"W x 0.60"H
Weight 0.35lb
Mounting Provisions 4 mounting holes for #6 bolts or screws; flange mount
Connectors MIL-DTL-24308G 3W3 Female D-Sub
Bandwidth 2.4GHz-2.5GHz and 4.9GHz-5.85GHz
Input Impedance 50 ohms
Average Gain 2.4GHz-2.5GHz: -3.15dBi
4.9GHz-5.5GHz: -3.47dBi;
5.5GHz-5.85GHz: -3.70dBi
Peak Gain 2.4GHz-2.5GHz: 5.70dBi
4.9GHz-5.5GHz: 5.29dBi
5.5GHz-5.85GHz: 4.03dBi
Environmental Qualifications RTCA DO-160G

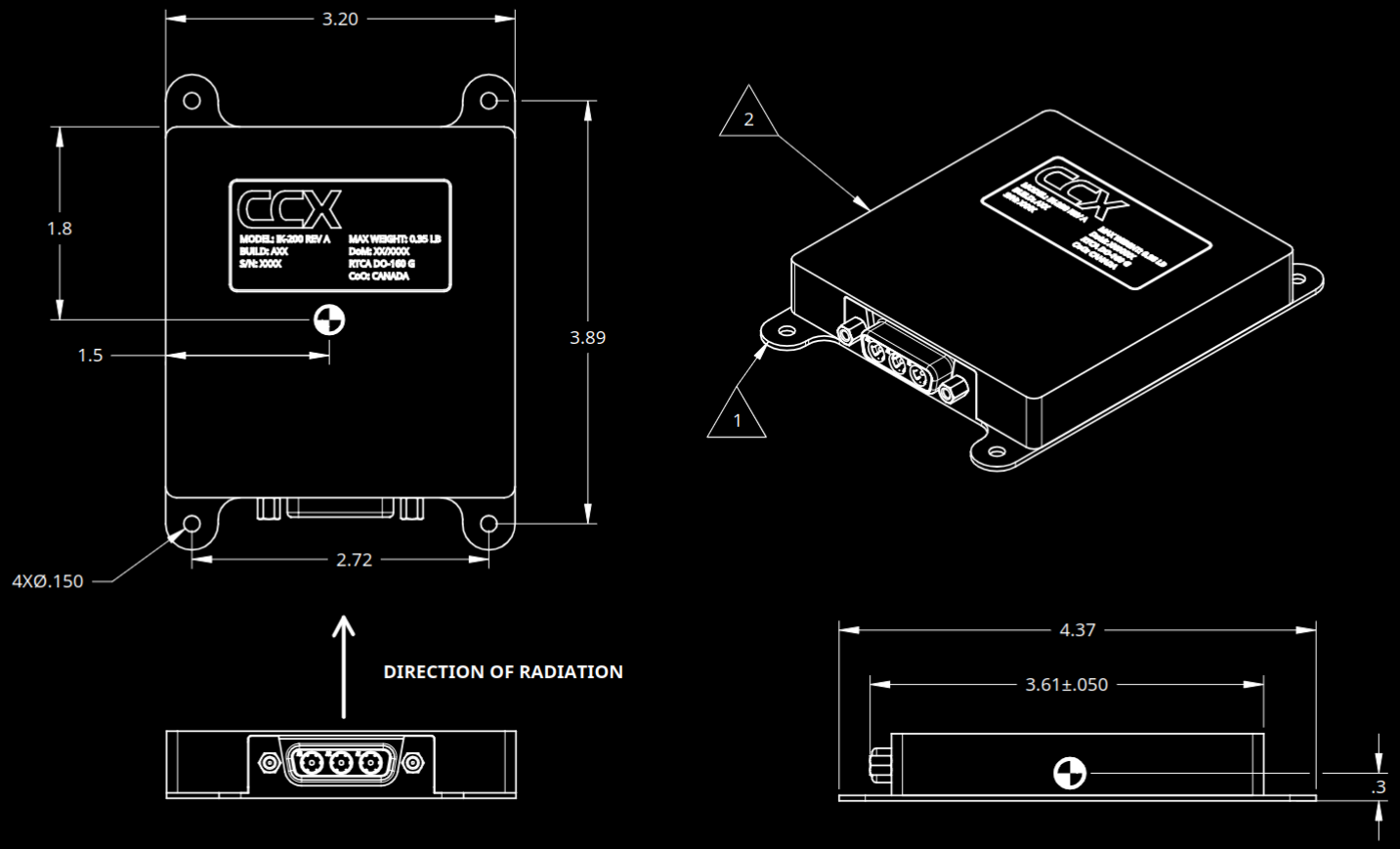

Outer Dimensions
IK-200 Outer Dimmensions
