AP-710 Tactical Console

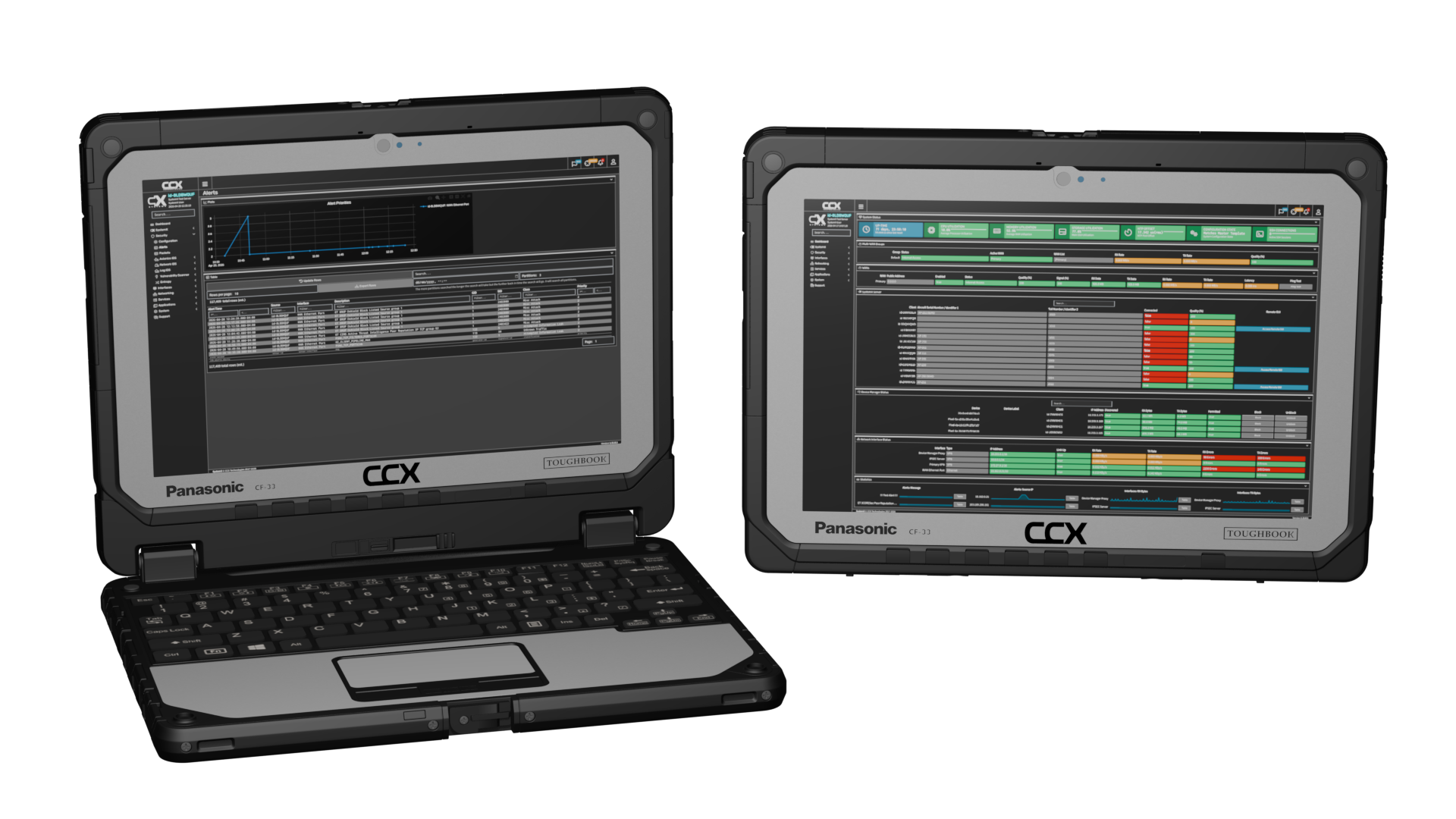

AP-710

The CCX Technologies AP-710 Tactical Console is a ruggedized device offering convenient access to the full SystemX tool suite, including an IDS, system monitoring, application hosting, and remote management. The console provides a stand-alone user interface to CCX Technologies’s SystemX; it can act as a node in a fleet of SystemX-connected devices or as a standalone interface to installed systems.

The AP-710 can also function as a maintenance laptop for systems and vehicles, facilitating the management of a hardware and software and providing a means for data extraction from systems without integrated connectivity.

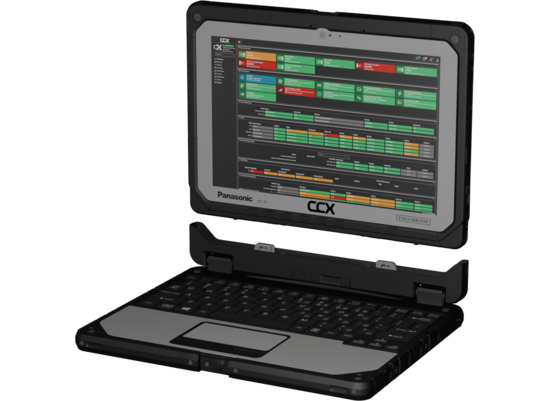

The AP-710 can be purchased with or without a removable keyboard and docking station, acting as a laptop or tablet. The console can also be vehicle-mounted or handheld using a complete selection of commercially available mounting options.

Applications Interfaces Specifications

Applications

The AP-710 is a configurable rugged laptop-tablet hybrid, capable of supporting a myriad of applications. With a complete version of the SystemX Operating System pre-installed, the AP-710 supports all of the networking, security, and management features provided by SystemX.

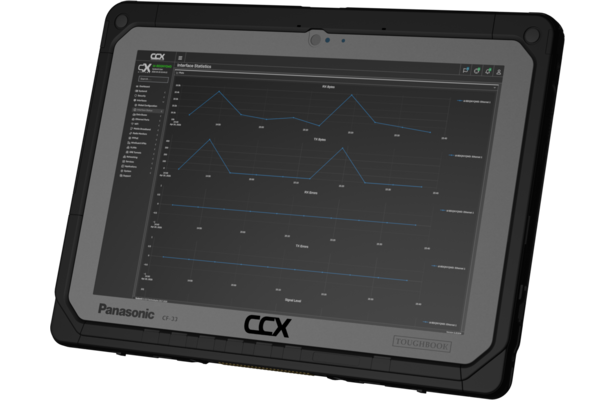

AP-710 being converted into tablet
ap-710 mount

SystemX Interface

The AP-710 Tactical Console is a portable and convenient user interface for CCX Technologies’s SystemX . This device can operate as a node in a fleet of SystemX devices, or standalone among established third party equipment. The AP-710 offers access to all of SystemX’s capabilities, including intrusion detection, application hosting, and extensive networking tools.

Maintenance Console

The AP-710 can act as a maintenance laptop for systems, facilitating convenient data transfer between devices which can include software and certificate updates and data collection for maintenance and security purposes. The AP-710 offers efficient access to SystemX’s management features, including software and hardware management with the integrated Configuration Management Application .

ap-710 mount
ap-710 mount

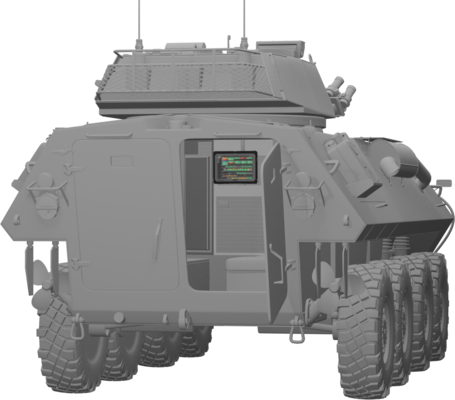

Vehicle Mounting

Based on a CF-33 Toughbook by Panasonic, the AP-710 offers the versatility of a convertible design, allowing it to function as a handheld or mountable tablet or a laptop. The AP-710 is compatible with any mounting systems designed for the CF-33. Vehicle mounting facilitates convenient access to real-time data while on the move, improving the operational efficiency of SystemX.

Interfaces

QTY Interface Standards
2 Power Li-ion batteries (11.1V)
AC Adapter (AC 100V-240V)
1 WiFi 6E AX211
0-2 Cellular 4G (LTE,LTE-A) and/or 5G (Sub6)

Specifications

Dimensions 12.1"L x 9.6"W x 0.9"H
(12.3" x 11.4" x 1.8" with Keyboard)
Display 12.0" 3:2 QHD 2160 x 1440
Connectors USB-C, USB-A, HDMI
GPS Optional dedicated GPS (u-blox NEO-M9N)
Ethernet 1Gbps RJ-45
Data Storage 512GB, 1TB, or 2TB removable OPAL NVMe SSD
Memory 16GB or 32GB RAM (LPDDR4x-4266MHz)
Antenna Integrated or external antennas
