VM-200 SystemX Server

The CCX Technologies VM-200 is a complete SystemX Server providing all of the latest SystemX applications and features. The server can be installed on supported Cloud Services like AWS, GCP, Azure, and on local self-managed Virtual Machine managers, including KVM, VirtualBox, and VMWare.
The Server can be used to manage multiple SystemX instances (Routers, DataPHYs, other Servers, etc) providing VPN Termination, Device Managers, Intrusion Detection Systems, Remote Support, SIEM, and data management applications. SystemX Servers are a required element for many of the more advanced features provided by SystemX routers and devices.
The Server can also be operated as a stand-alone Advanced Firewall and Security Gateway, providing all of the Network Management, Multi-WAN, and Routing features provided by SystemX to a local network or cloud based network.
Applications
The VM-200 is a configurable platform that is suitable for a multitude of different applications. With a complete version of the SystemX Operating System the VM-200 supports all of the networking, security, data collection, and application hosting features provided by SystemX.


SystemX Remote Management
SystemX Remote Management applications provide all of the features required to manage an entire fleet of SystemX based and third-party equipment from a centralized server.
It is possible to remotely and securely access the configuration GUIs on any registered equipment connected the server.
Rulesets, configuration template files, and third-party containerized applications can all be pushed out and automatically installed from a SystemX Server. Greatly simplifying managing an entire fleet of SystemX equipment.

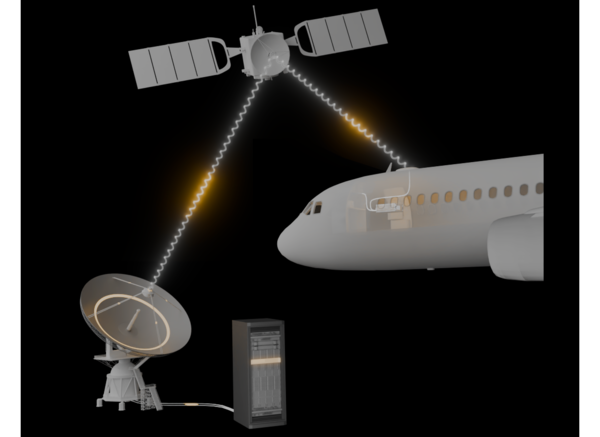

VPN Termination with SATCOM Optimizations
SystemX provides SATCOM System Management tools that can be used to provide secure connectivity for devices connected to a remote SystemX Router through a SystemX Server over any available SATCOM, wireless, or wired networks.
The SystemX Server also provides seamless VPN link optimization features, like a TCP Performance Enhancing Proxy (TCP PEP) that works in conjunction with the embedded VPN to ensure optimum VPN performance even over high latency SATCOM links.
The SystemX Server can be installed within a managed DMZ network to provide remote access to sensitive private networks.


Remote Device and User Managers
The SystemX Device Manager detects and manages device traffic on a local network. Externally addresses traffic from devices can be encrypted and routed through a SystemX Server allowing device connectivity to be controlled from a centralized location.
WPA-Enterprise users can be managed using the SystemX User Manager . Administrators can configure user names, passwords, and data limits for specific users to connect to WiFi Access Points on any managed SystemX Routers. This can be used instead of shared SSIDs/passwords to provide an enhanced user experience across a fleet of managed vehicles.
Operational Network Data Management
SystemX can collect flight and vehicle data providing secure data sources for safety, security, and maintenance programs.
SystemX provides a set of data analysis and management tools, and provides interfaces so that local SystemX hosted applications and externally hosted applications can access any data collected by the SystemX System.


PKI Certificate Management
The SystemX Certificate Manager can verify and update certificates as part of a complete PKI system. Updated certificates can be forwarded from the VM-200 Ground Server to SystemX Equipment. Public keys from certificates can be used to verify signatures and encrypt data to be sent to the certificate owner. CRLs can be generated and published using an integrated HTTP server.
The SystemX Certificate Manager includes a unique Certificate Proxy that can be used to securely and safely transmit updated and validated certificates to equipment that would otherwise not have external cognitively.
Alert Management and SIEM Interfaces
Security, safety, and maintenance alerts generated by SystemX equipment can be securely transmitted to a SystemX Server in real-time via a SATCOM system, post mission over a wired or wireless connection, or using dedicated maintenance equipment when no wireless connectivity is available. Individual data samples can be prioritized based on source and contents so that critical data can be streamed in real time over low-bandwidth links.
Alerts can be stored and processed on a SystemX Server and sent to exiting an third-party SIEM software in a Security Operations Centre.


Secure Voice SIP Trunk
The SystemX Secure Voice VoIP system is fully encrypted supporting modern AES cryptography algorithms, ensuring all communications are kept secure. All calls are terminated at a SystemX server which can connect to commercial SIP Trunks to provide access to the public telephone system.
Multiple custom phone numbers can be assigned to remote systems so that specific handsets can have unique numbers, eliminating the need for confusing attendant features in the remote PBX, and providing calling over multiple connectivity systems with the same number.
Application Hosting
Third-party applications can be securely hosted by SystemX's secure application hosting framework . SystemX containers (based on Linux LXC Containers) can support any third-party software.
