AP-551 Wideband Audio Interface
The AP-551 Wideband Audio DataPHY can record Audio from microphones, analog cryptography systems, sonar systems, or any other equipment that generates standard band-width or wideband analog audio signals. In a 1 by 2 by 3 inch enclosure it is the world's smallest installable audio interface.
The AP-551 can also be used as a SIP Terminal that interfaces with an external headset or handset.
Within a very small form factor, the Wideband Audio DataPHY contains two audio receivers and one audio transmitter, a Gigabit Ethernet interface, an 802.11ac WiFi Radio, an integrated antenna, and 120 GB of local storage.
Software applications are provided by the integrated SystemX Operating System which includes dozens of networking, cybersecurity, data collection, configuration management, and application hosting features.
Applications
The AP-551 cab be used as a data recorder or as a SIP Terminal with an attached headset or handset. With a customized version of the SystemX Operating System the AP-555 also supports many of the networking, security, data collection and management, and application hosting features provided by SystemX.

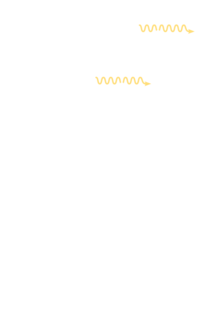

Wideband Audio Data Recording
Audio Data collected by the AP-551 DataPHY can be transmitted to other SystemX based equipment and monitored as part of an Avionics Intrusion Detection System ,FDM/FOQA System, or preventative maintenance systems.
Data can also be sent to third-party equipment and systems, either during a flight, or post-flight, using a secure API.
The AP-551 DataPHY supports a wide bandwidth so that wideband audio sources like cryptography systems, or sonar systems can be recorded.
Headset and Handset Interfaces for Secure Voice
The AP-551 can be used as a SIP terminal for connecting a cockpit headset, crew headset, or standalone handset to a PBX, like the PBX included in the CCX Technologies Secure Routers.
The AP-551 also includes and integrated PBX, it function as a standalone system providing calling over the CCX Technologies Secure Voice .
Interfaces
| QTY | Interface | Standards |
|---|---|---|
| 1 | Ethernet | 1000/100/10BASE-T (IEEE 802.3ab/u/i) |
| 1 | WiFi (Integrated Antenna) | IEEE 802.11ac/n/b/a (2.4GHz/5GHz) |
| 2 | Audio Receiver | Single-ended or differential analog audio |
| 1 | Audio Transmitter | Single-ended or differential analog audio |
| 1 | Radio Disable Discrete Inputs | ARINC-628 |
| 2 | Discrete Output | ARINC-628 |
| 2 | Discrete Input | ARINC-628 |
| 1 | Power | 28V DC |
Specifications
| Dimensions | 2.46"L x 2.08"W x 1.05"H |
| Weight | 0.35lb |
| Mounting Provisions |
2 mounting holes for #6 bolts or screws; flange mount. Option to install in 2 or 4 MCU form factor with IK-350 |
| Connectors | MIL-DTL-24308G 26-pin Male HD D-sub |
| Operating Voltage | 28VDC |
| Typical Power Consumption | 2.5W |
| Maximum Power Consumption | 5W |
| WiFi1 | IEEE802.11ac/n/a/b (WiFi 5), 2.4GHz/5GHz, radio with radio enable discrete input |
| Ethernet |
10/100/1000 BASE-T IEEE 802.3 Compliant Ethernet Ports
with: ACS, Automatic MDI/MDIX crossover, Automatic polarity correction, and IEEE 802.3u compliant auto negotiation |
| Wideband Audio | 100kHz bandwidth, single ended or differential analog audio |
| Discrete GPIO | ARINC-628 GND/Open and High/Low Sensing Discrete Inputs/Outputs |
| Data Storage | 120GB |
| Environmental Qualifications | RTCA DO-160G |
| 1All DataPHYs are available with hardware disabled WiFi radios for applications with security requirements that don't allow for wireless connections. | |
Outer Dimensions
Architecture
