ARINC-600 Trays

ARINC-600 Trays

In addition to an ARINC-600 to 19″ Rack Adapter CCX Technologies also produces ARINC-600 Trays for use in a lab environment.

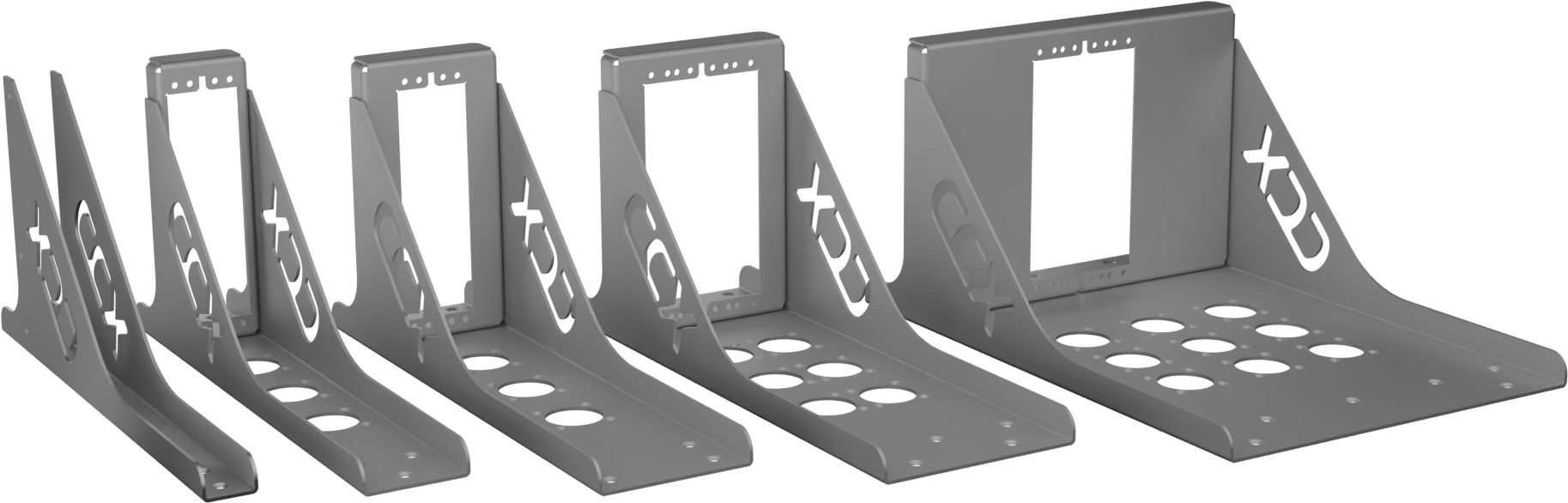

Trays are available in ARINC-600 1MCU, 2MUC, 3MCU, 4MCU, and 8MCU sizes and all are available with optional 28VDC fans.

Applications Specifications

Applications

The CCX Technologies ARINC-600 Trays are intended for use in a Lab Environment. They were originally designed to be paired with an LK-402 but can also be mounted in other custom test jigs.

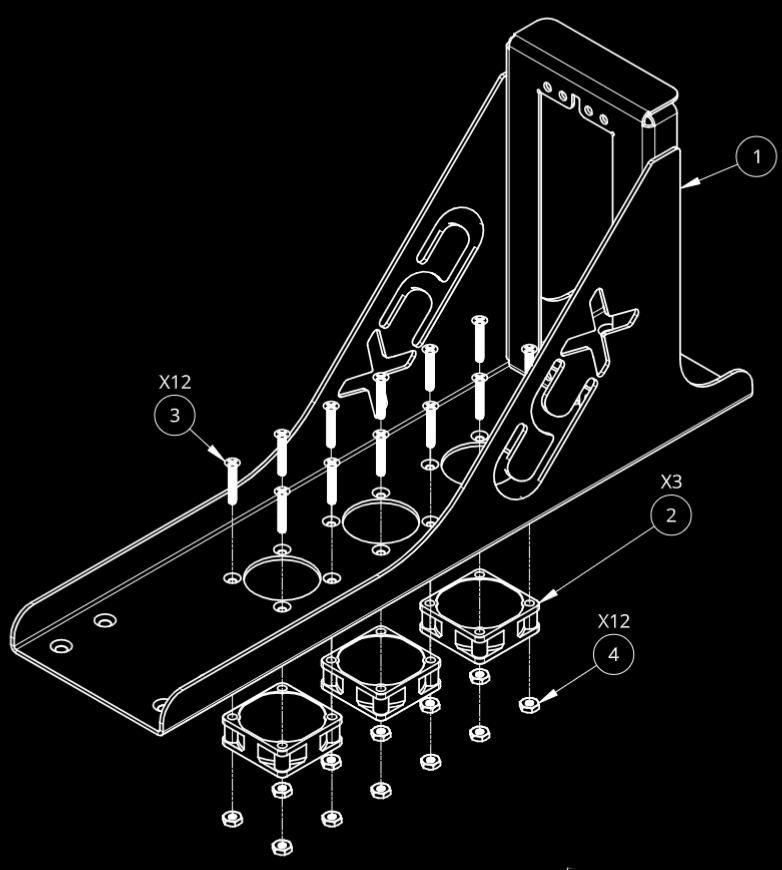

ARINC-600 Fans

Specifications

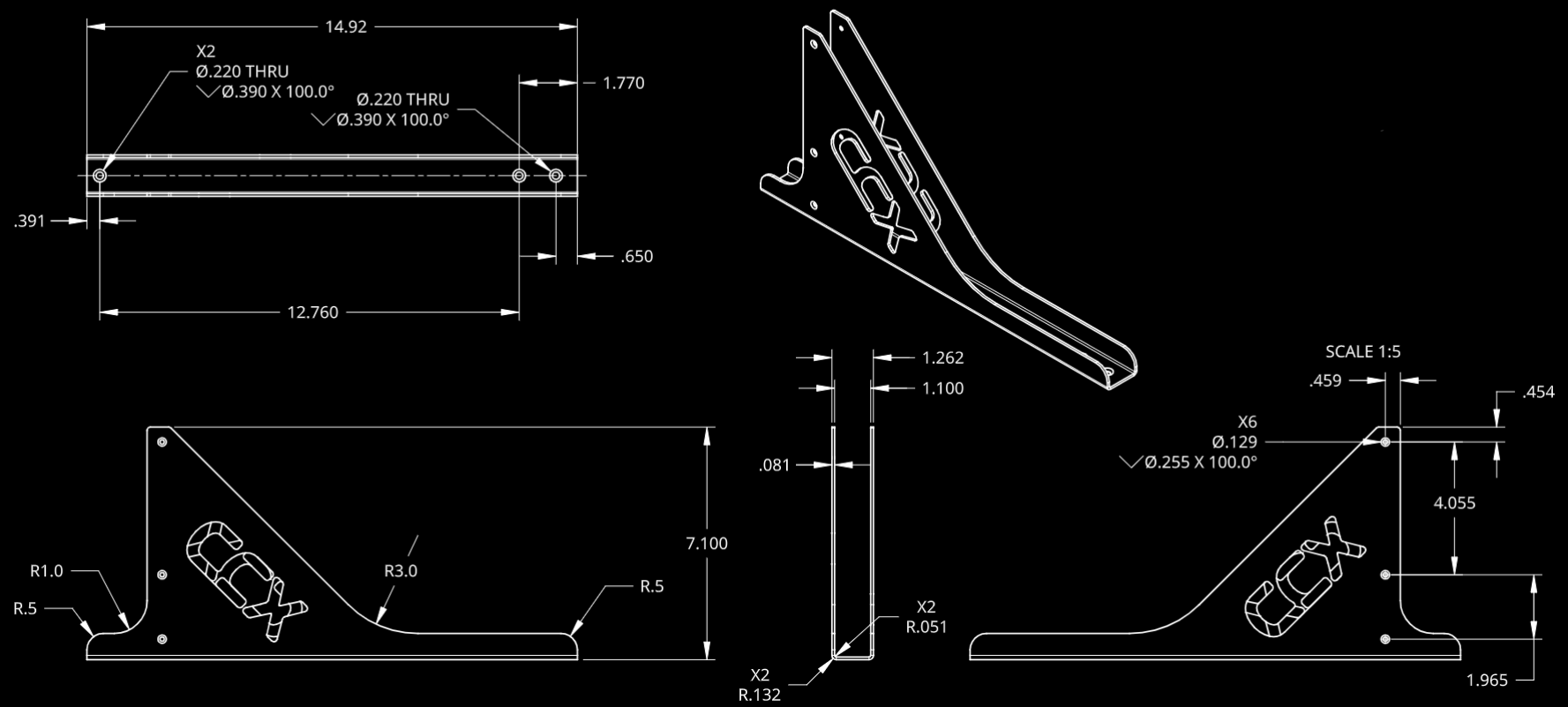

Outer Dimensions 1MCU
1MCU Outer Dimmensions

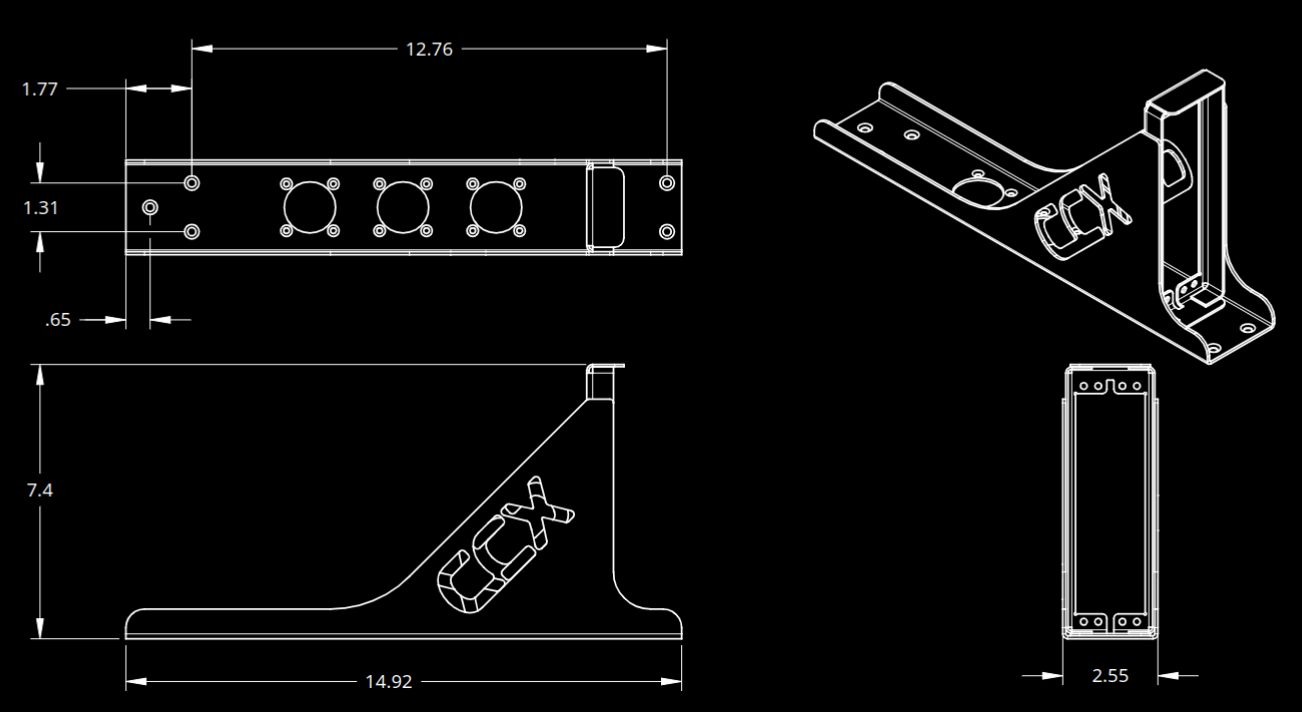

Outer Dimensions 2MCU
2MCU Outer Dimmensions

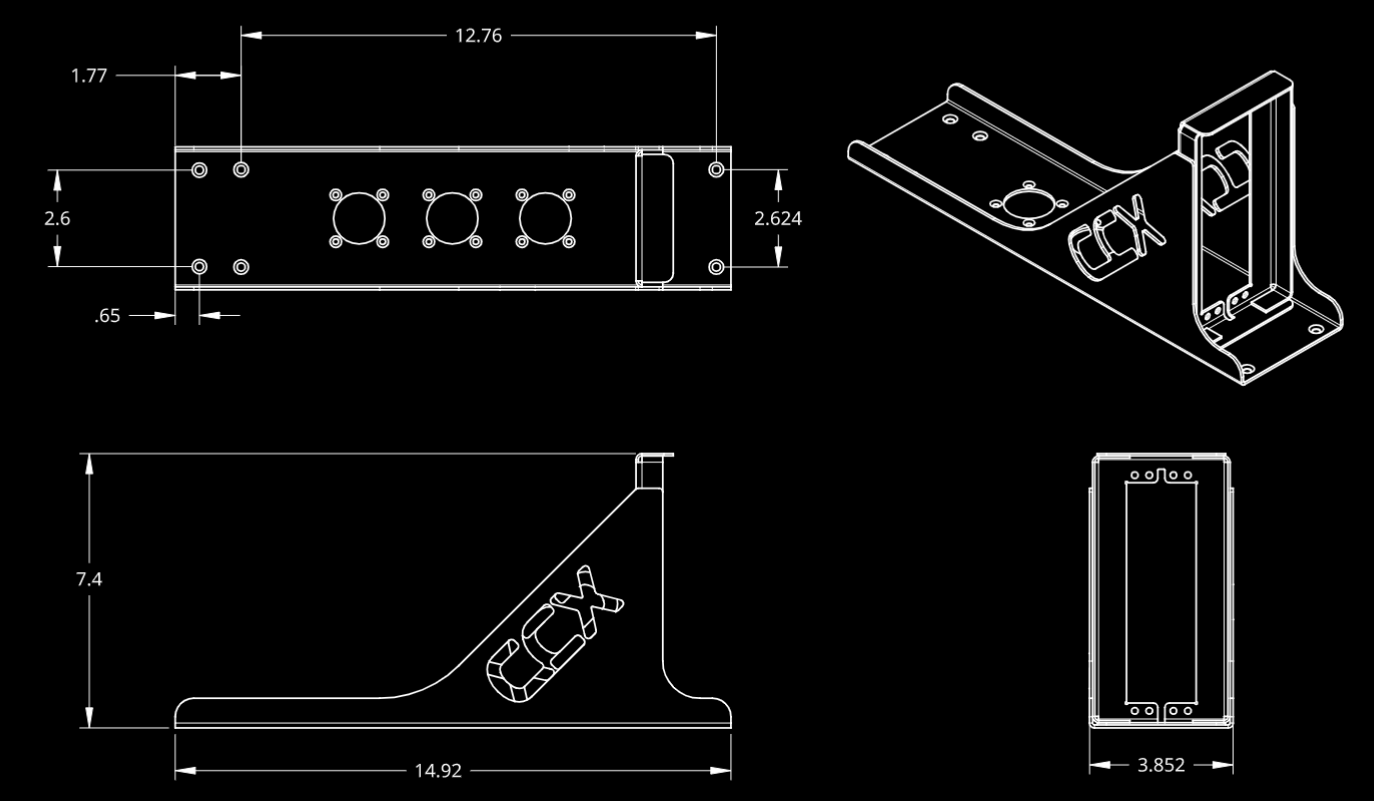

Outer Dimensions 3MCU
3MCU Outer Dimmensions

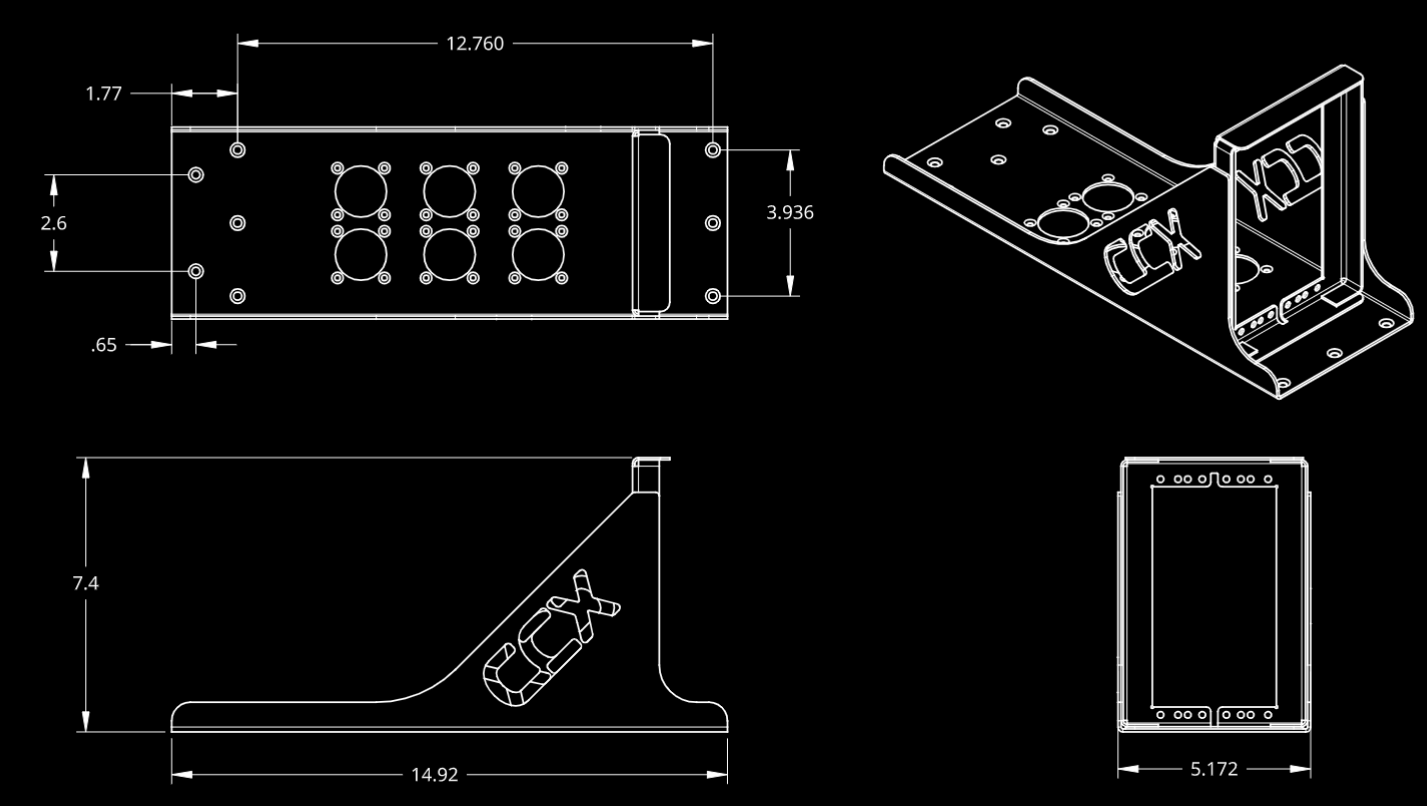

Outer Dimensions 4MCU
4MCU Outer Dimmensions

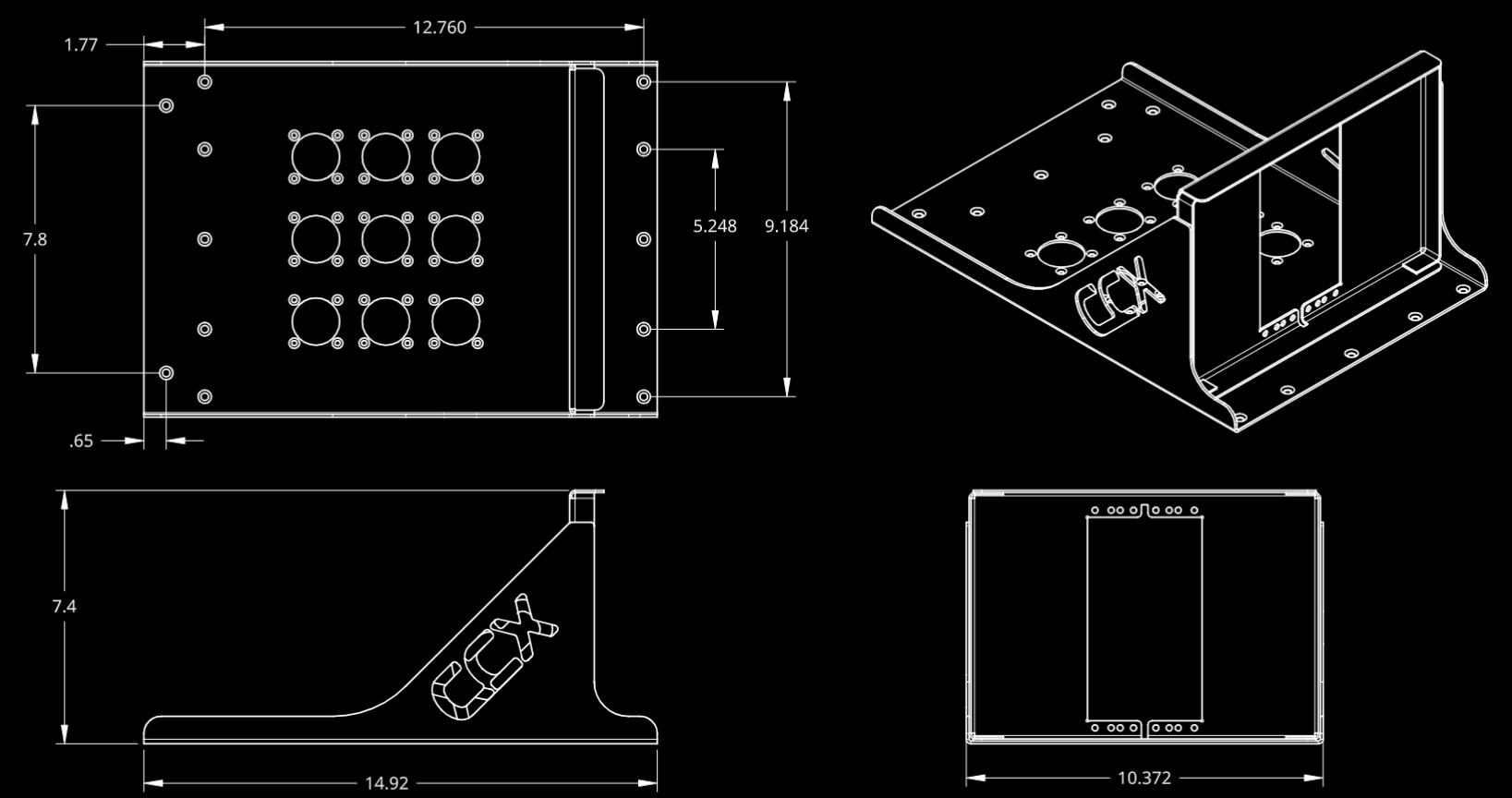

Outer Dimensions 8MCU
8MCU Outer Dimmensions
