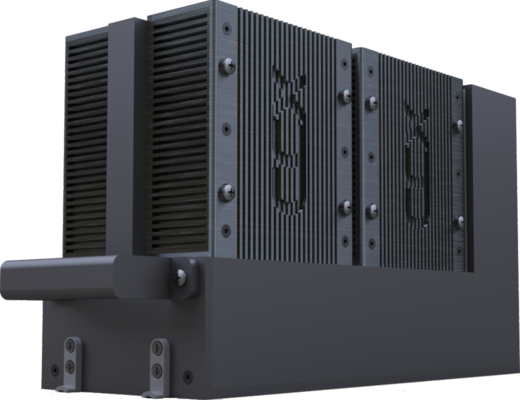

IK-350 ARINC-600 Rack Mount Adapter

IK-350

The IK-350 ARINC-600 Adapter makes it possible to install up to 4 Routers (AP-251, AP-250, AP-160, AP-155, etc) or up to 8 DataPHYs in an ARINC-600 4MCU tray, or 2 Routers and 4 DataPHYs in an ARINC-600 2MCU tray.

The number and types of units can be mixed and matched using integrated adapter and blanking plates. The internal wiring harness and ARINC-600 connector are completely customizable, making it possible to adapt them to existing pin-outs for zero-rewire upgrades and replacements.

Designed to install the CCX Technologies flange mount LRU’s into an ARINC-600 form factor, each install kit includes a mix of adapter plates for a specific application. Contact us for ordering options related to your specific application.

Applications Interfaces Specifications

Applications

The IK-350 can be used to mount any CCX Technologies Routers or DataPHYs in a 4MCU or 2MCU ARINC-600 tray.

It is intended for use in systems where the new equipment is replacing equipment that is currently installed in an ARINC-600 Tray, or for systems where the preferred installation method method for Avionics Equipment is an ARINC-600 rack.

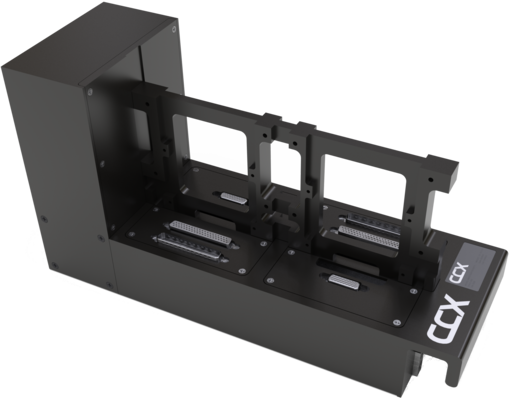

IK-350 Empty

Interfaces

4MCU
QTY Interface Standards
4 Routers Router Installation Slots
8 DataPHYs DataPHY Installation Slots
2MCU
QTY Interface Standards
2 Routers Router Installation Slots
4 DataPHYs DataPHY Installation Slots

Specifications

Dimensions ARINC-600 2MCU or 4MCU
