SystemX Development Kits
SystemX Development Kits provide a set of tools for that can be used to build custom end-to-end cybersecurity and networking solutions for aerospace and defence networks.
The kits combine CCX Technologies Hardware, breakout boxes, SystemX Software, Servers, and Support to facilitate third-party software development, system configuration and management for test purposes, IDS ruleset development, or any other evaluation or development activates based on the CCX Technologies SystemX infrastructure.
Applications
With a complete SystemX system in a lab setting it is possible to test and develop me solutions before deploying them on mobile platforms. SystemX Development Kits are typically used for initial product evaluation, system development, configuration update testing, and product support.
CCX Technologies ARINC-600 19" racks are the perfect compliment to these Development Kits, as they provide an easy means to install additional avionics equipment in a lab setting.
Cybersecurity Solutions

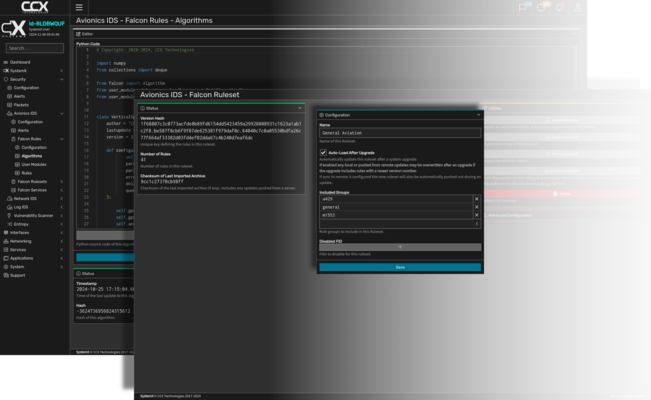

One of the primary uses for SystemX Development Kits is the development of Algorithms and Rulesets for our Avionics, Network, and Host Intrusion Detection Systems.
These kits provide all the hardware, software, and support required for to write custom rules and algorithms, and to perform post-event forensic audits.
Configuration Management

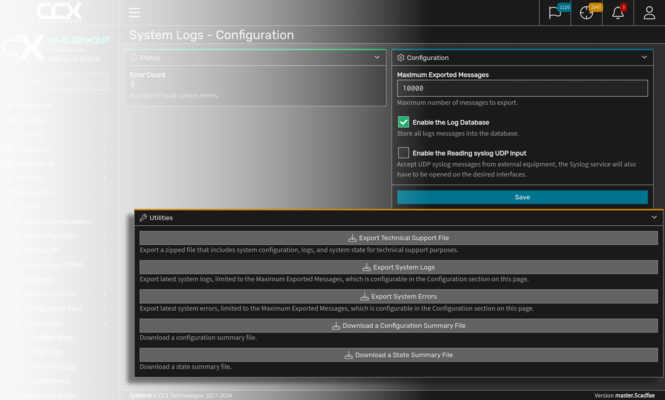

The SystemX Development Kits can be used to configure a complete system in a lab setting and then export the configuration files to a system or fleet of systems.
Development Kits make it possible to test configuration changes in a safe lab environment, before pushing them out to a platform or a fleet.
Third-Party Application Development
The SystemX Operating System provides secure containers and an API so that third-party software can be safely installed on mobile platforms.
These Development Kits can be used to test, and even directly develop third-party SystemX containers.
Available Kits

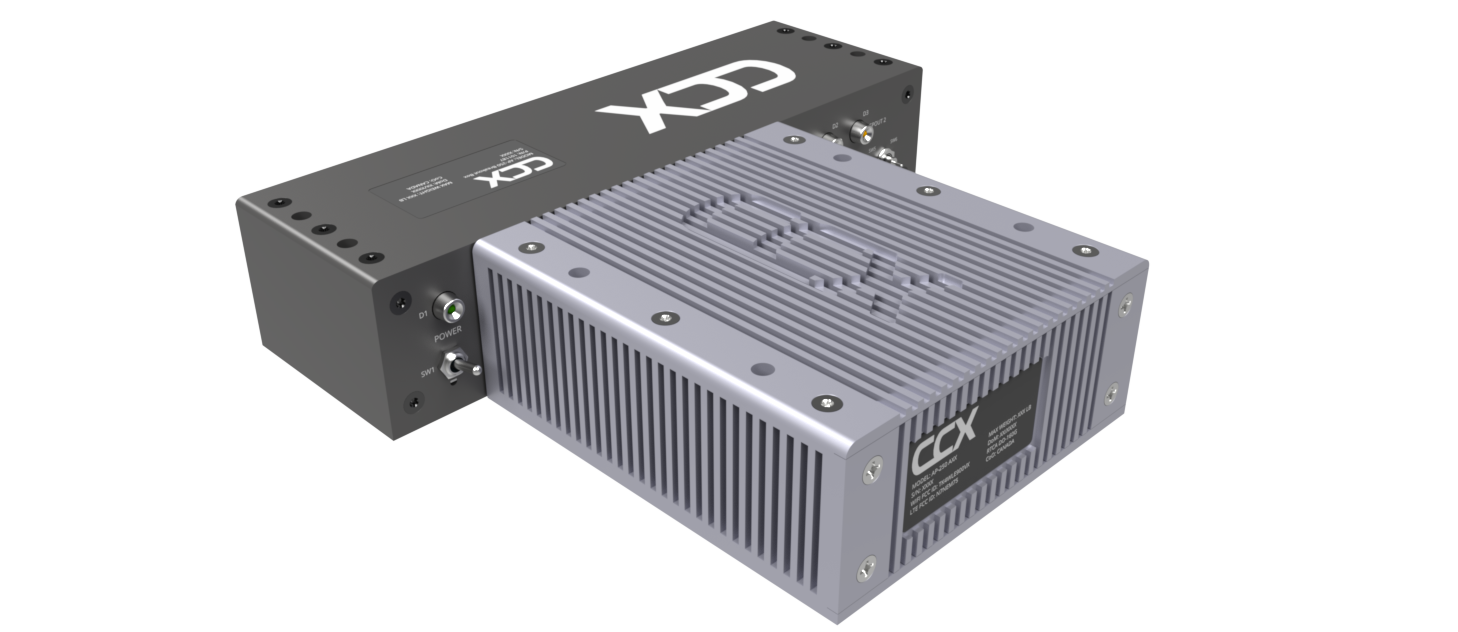

All kits include specific CCX Technologies Hardware, Breakout Boxes that can be used to interface the hardware with commercial lab equipment, a one year license to a CCX Technologies managed SystemX Server, access to a SystemX documentation set, and engineering support to get the kit up and running.

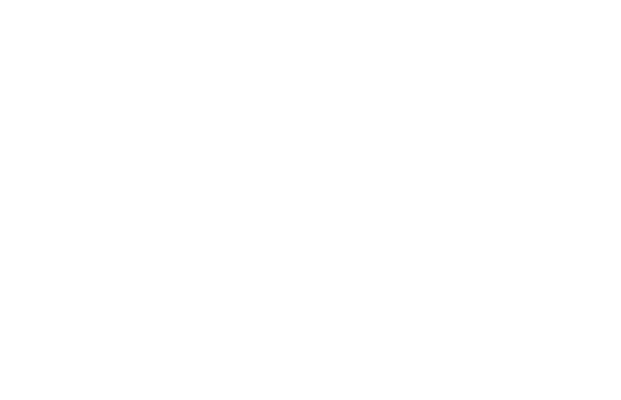

LK-145 Secure Router
In addition to the server and support provided with every kit, the Secure Router Development Kit includes an AP-251, and an AP-251 breakout box.
These kits also come with commercial WiFi and LTE Antennas, and a globally active SIM Card for remote connectivity.
This kit is useful for testing Cabin Routing configuration in a lab setting, evaluating the capabilities of the AP-251, or developing third-party applications.
LK-127 ARINC-429 Data Processing
The LK-127 includes all of the tools from the LK-145 plus an ARINC-429 DataPHY and breakout box.
This kit is useful for developing and testing Avionics IDS Algorithms and Rulesets and for developing general data-collection solutions.

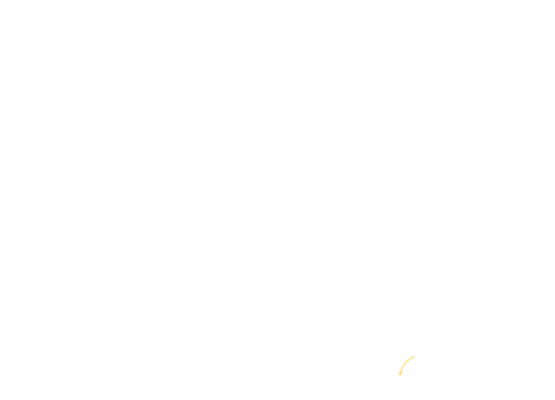

LK-131 MIL-1553 Data Processing
The LK-131 includes all of the tools from the LK-145 plus a MIL-1553 DataPHY and breakout box.
This kit is useful for developing and testing Avionics IDS Algorithms and Rulesets and for developing general data-collection solutions.
Interfaces

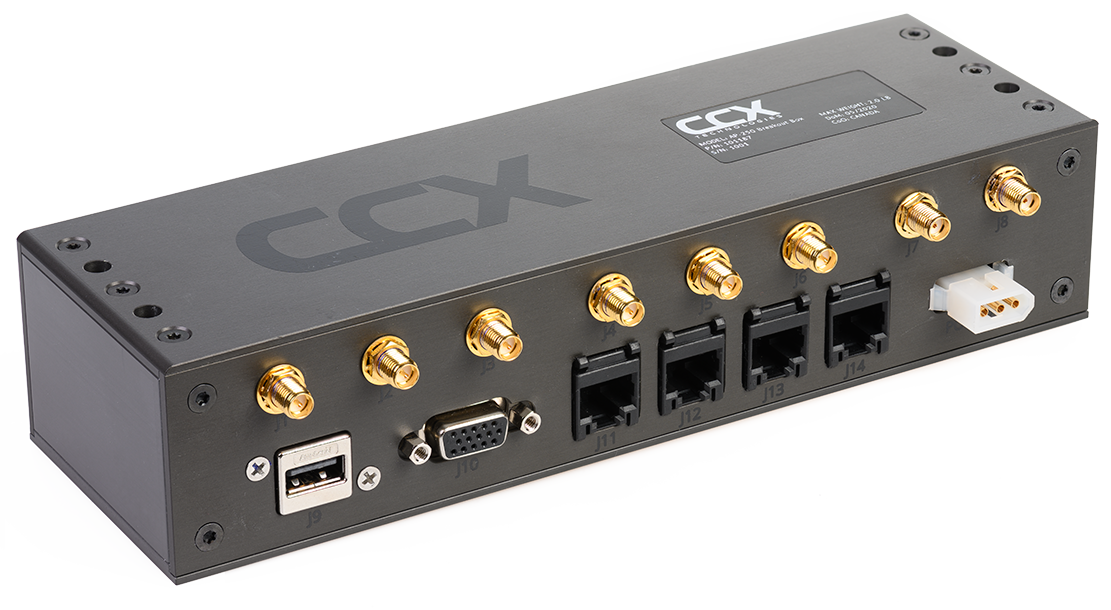

AP-251 Breakout Box
| QTY | Interface | Standards |
|---|---|---|
| 6 | Ethernet | 1000/100/10BASE-T (IEEE 802.3ab/u/i) |
| 4 | WiFi Antenna Connectors | IEEE 802.11ax/ac/n/b/a (2.4GHz/5GHz) |
| 2 | Cellular Connectors | 5G/4G |
| 3 | Radio Disable Discrete Inputs | ARINC-628 |
| 4 | Bidirectional Discretes | ARINC-628 |
| 1 | Power | 12V and 28V DC |
| 1 | USB | USB Port for Security Keys |
| 1 | Power LED | Green |
| 4 | Discrete Output LEDs | Yellow |
| 1 | Power Switch | |
| 7 | Discrete Input Switches |
ARINC-429 Breakout Box
| QTY | Interface | Standards |
|---|---|---|
| 1 | Ethernet | 1000/100/10BASE-T (IEEE 802.3ab/u/i) |
| 1 | Databus Receiver | MIL-1553 |
| 1 | Radio Disable Discrete Inputs | ARINC-628 |
| 1 | Discrete Output | ARINC-628 |
| 1 | Discrete Input | ARINC-628 |
| 1 | Power | 28V DC |
| 1 | Power LED | Green |
| 1 | Discrete Output LEDs | Yellow |
| 1 | Power Switch | |
| 1 | Discrete Input Switches |
MIL-1553 Breakout Box
| QTY | Interface | Standards |
|---|---|---|
| 1 | Ethernet | 1000/100/10BASE-T (IEEE 802.3ab/u/i) |
| 4 | Databus Receiver | ARINC-429 |
| 1 | Radio Disable Discrete Inputs | ARINC-628 |
| 1 | Discrete Output | ARINC-628 |
| 1 | Discrete Input | ARINC-628 |
| 1 | Power | 28V DC |
| 1 | Power LED | Green |
| 1 | Discrete Output LEDs | Yellow |
| 1 | Power Switch | |
| 1 | Discrete Input Switches |
Specifications
| Ethernet Connectors | RJ-45 |
| Power Connectors | Banana Jacks for Standard Lab Supplies |
| WiFi Antennas | RP-SMA |
| Cellular Antennas | SMA |
| Discretes | D-Sub (pin-outs provided in documentation set) |
| ARINC-429 | D-Sub (pin-outs provided in documentation set) |
| MIL-1553 | D-Sub (pin-outs provided in documentation set) |
Outer Dimensions

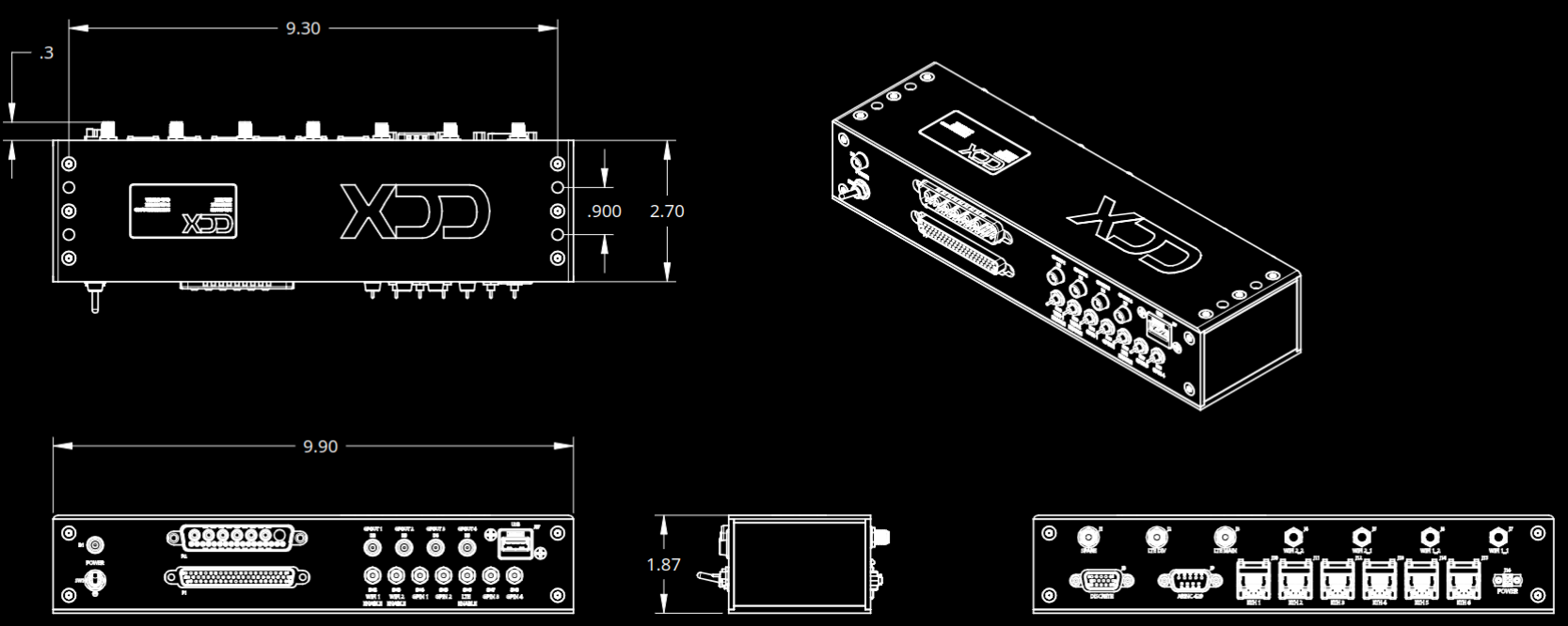

AP-251 Breakout Box

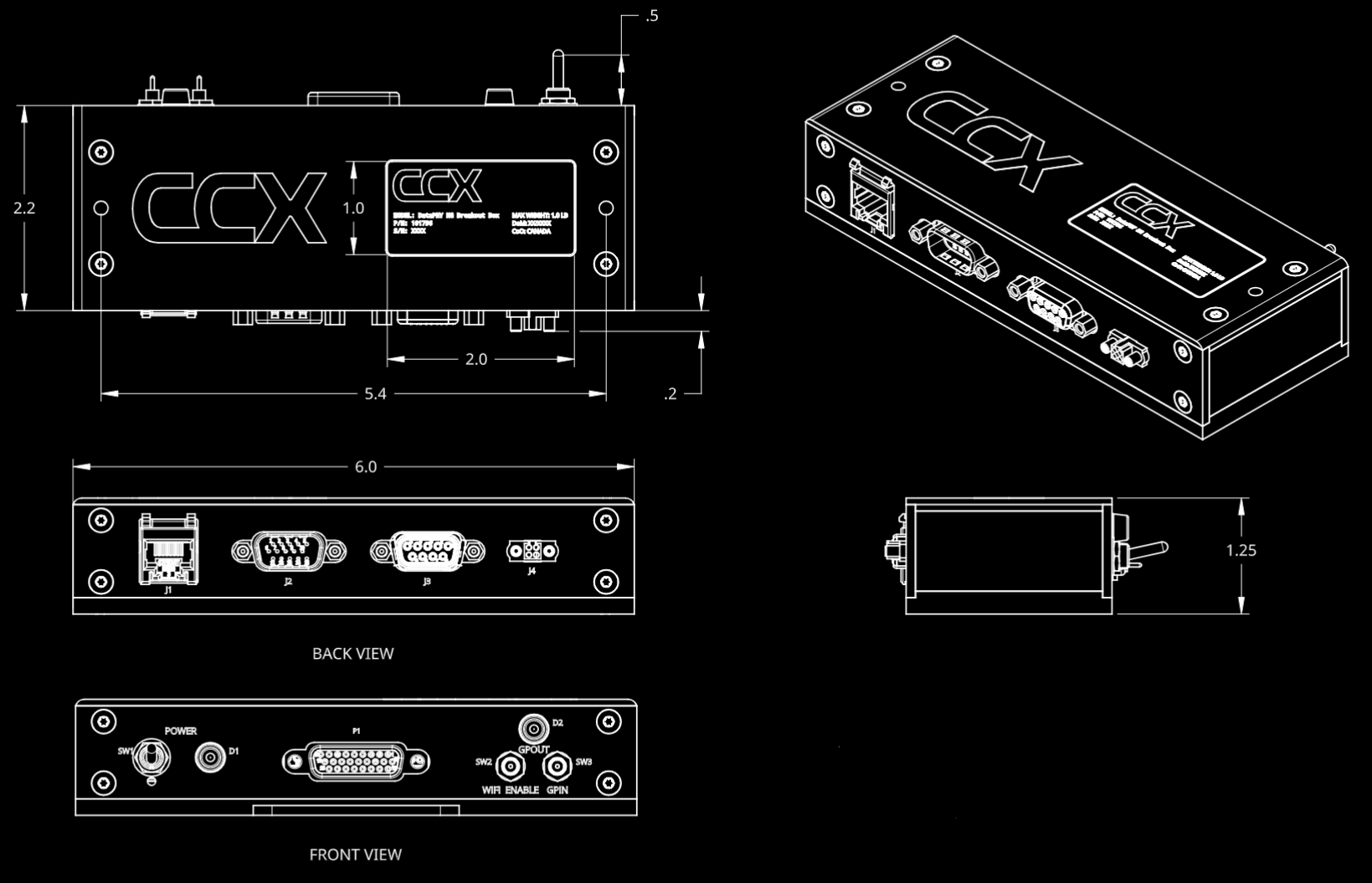

ARINC-429 and MIL-1553 Breakout Box
